產品規格表

產品特性

應用領域

曲線圖片

平凹柱面透鏡列表
產品型號	有效焦距EFL(mm)	長度L(mm)	寬度H(mm)	曲率半徑R1(mm)	后焦距BFL(mm)	中心厚度Tc(mm)	邊緣厚度Te(mm)
SJPAZ060403	-3.9	6	4	-2.02	-5.22	2	2.7
SJPAZ080403	-3.9	8	4	-2.02	-5.22	2	2.7
SJPAZ060404	-4	6	4	-2.07	-5.32	2	2.6
SJPAZ080404	-4	8	4	-2.07	-5.32	2	2.6
SJPAZ060405	-5.8	6	4	-3	-7.12	2	2.4
SJPAZ080405	-5.8	8	4	-3	-7.12	2	2.4
SJPAZ080606	-6.4	8	6	-3.31	-7.72	2	3.2
SJPAZ120606	-6.4	12	6	-3.31	-7.72	2	3.2
SJPAZ090707	-7.7	9	7	-3.98	-9.02	2	3.4
SJPAZ140707	-7.7	14	7	-3.98	-9.02	2	3.4
SJPAZ121009	-9.7	12	10	-5.01	-11.02	2	4.8
SJPAZ201009	-9.7	20	10	-5.01	-11.02	2	4.8
SJPAZ121012	-12.7	12	10	-6.56	-14.02	2	3.8
SJPAZ201012	-12.7	20	10	-6.56	-14.02	2	3.8
SJPAZ151313	-13.7	15	13	-7.08	-15.02	2	5.3
SJPAZ261313	-13.7	26	13	-7.08	-15.02	2	5.3
SJPAZ121015	-15	12	10	-7.75	-16.32	2	3.4
SJPAZ201015	-15	20	10	-7.75	-16.32	2	3.4
SJPAZ211919	-19	21	19	-9.82	-20.32	2	7.9
SJPAZ381919	-19	38	19	-9.82	-20.32	2	7.9
SJPAZ171520	-20	17	15	-10.34	-21.32	2	4.7
SJPAZ301520	-20	30	15	-10.34	-21.32	2	4.7
SJPAZ151222	-22.2	15	12.5	-11.47	-23.52	2	3.5
SJPAZ251222	-22.2	25	12.5	-11.47	-23.52	2	3.5
SJPAZ121025	-25	12	10	-12.92	-26.32	2	2.8
SJPAZ201025	-25	20	10	-12.92	-26.32	2	2.8
SJPAZ181625	-25.4	18	16	-13.13	-26.72	2	4.4
SJPAZ321625	-25.4	32	16	-13.13	-26.72	2	4.4
SJPAZ282525	-25.4	28	25.4	-13.13	-26.72	2	10.3
SJPAZ512525	-25.4	51	25.4	-13.13	-26.72	2	10.3
SJPAZ222030	-30	22	20	-15.5	-31.32	2	5.3
SJPAZ402030	-30	40	20	-15.5	-31.32	2	5.3
SJPAZ282638	-38.1	28	26	-19.69	-39.42	2	6.5
SJPAZ522638	-38.1	52	26	-19.69	-39.42	2	6.5
SJPAZ121040	-40	12	10	-20.67	-41.32	2	2.5
SJPAZ201040	-40	20	10	-20.67	-41.32	2	2.5
SJPAZ222050	-50	22	20	-25.84	-51.32	2	3.8
SJPAZ402050	-50	40	20	-25.84	-51.32	2	3.8
SJPAZ323050	-50	32	30	-25.84	-51.32	2	6.5
SJPAZ603050	-50	60	30	-25.84	-51.32	2	6.5
SJPAZ535050	-50.8	53	50.8	-26.25	-52.12	2	19.9
SJPAZ905050	-50.8	90	50.8	-26.25	-52.12	2	19.9
SJPAZ323060	-60	32	30	-31.01	-61.32	2	5.6
SJPAZ603060	-60	60	30	-31.01	-61.32	2	5.6
SJPAZ626060	-60	62	60	-31.01	-61.32	2	23.6
SJPAZ956060	-60	95	60	-31.01	-61.32	2	23.5
SJPAZ535062	-62.9	53	50.8	-32.51	-64.22	2	13.6
SJPAZ955062	-62.9	95	50.8	-32.51	-64.22	2	13.6
SJPAZ323070	-70	32	30	-36.18	-71.32	2	5
SJPAZ603070	-70	60	30	-36.18	-71.32	2	5
SJPAZ535075	-75	53	50.8	-38.76	-76.32	2	11.1
SJPAZ905075	-75	90	50.8	-38.76	-76.32	2	11.1
SJPAZ535075	-75.6	53	50.8	-39.07	-77.58	2	12
SJPAZ905075	-75.6	90	50.8	-39.07	-77.58	2	12
SJPAZ222080	-80	22	20	-41.34	-81.98	2	4.1
SJPAZ402080	-80	40	20	-41.34	-81.98	2	4.1
SJPAZ828080	-80	82	80	-41.34	-81.98	2	32.1
SJPAZ1458080	-80	145	80	-41.34	-81.98	2	32.1
SJPAZ3230100	-100	32	30	-51.68	-101.98	2	5.1
SJPAZ6030100	-100	60	30	-51.68	-101.98	2	5.1
SJPAZ90100100	-100	90	100	-51.68	-101.98	2	39.9
SJPAZ145100100	-100	145	100	-51.68	-101.98	2	39.9
SJPAZ3230130	-130	32	30	-67.18	-131.98	2	4.6
SJPAZ6030130	-130	60	30	-67.18	-131.98	2	4.6
SJPAZ3230150	-150	32	30	-77.52	-151.98	2	4.4
SJPAZ6030150	-150	60	30	-77.52	-151.98	2	4.4
SJPAZ90100150	-150	90	100	-77.52	-151.98	2	20.9
SJPAZ145100150	-150	145	100	-77.52	-151.98	2	20.9
SJPAZ3230200	-200	32	30	-103.36	-201.98	2	4
SJPAZ6030200	-200	60	30	-103.36	-201.98	2	4
SJPAZ90100200	-200	90	100	-103.36	-201.98	2	15.6
SJPAZ145100200	-200	145	100	-103.36	-201.98	2	15.6
SJPAZ3230250	-250	32	30	-129.2	-251.98	2	3.8
SJPAZ6030250	-250	60	30	-129.2	-251.98	2	3.8
SJPAZ6260300	-300	62	60	-155.04	-301.98	2	5.8
SJPAZ9560300	-300	95	60	-155.04	-301.98	2	5.8
SJPAZ3230400	-400	32	30	-206.72	-401.98	2	3.5
SJPAZ6030400	-400	60	30	-206.72	-401.98	2	3.5
SJPAZ3230500	-500	32	30	-258.4	-501.98	2	3.4
SJPAZ6030500	-500	60	30	-258.4	-501.98	2	3.4
SJPAZ3230700	-700	32	30	-361.76	-701.98	2	3.3
SJPAZ6030700	-700	60	30	-361.76	-701.98	2	3.3
SJPAZ32301000	-1000	32	30	-516.8	1001.98	2	3.2
SJPAZ60301000	-1000	60	30	-516.8	1001.98	2	3.2

產品參數

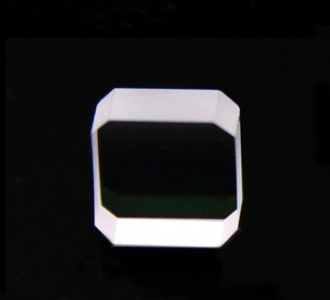

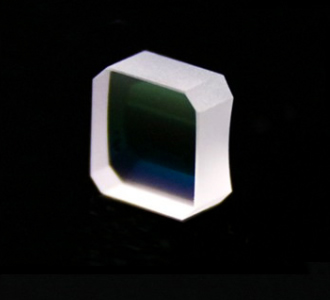

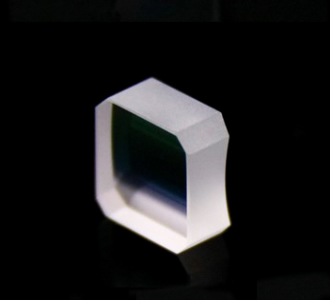

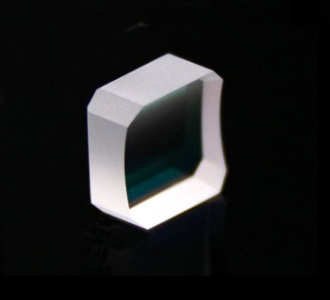

產品名稱	平凹柱面透鏡
產品型號	SJPAZM080822
產品材質	N-BK7(H-K9L)
規格尺寸	8×6×1.5mm
有效焦距	-22.521mm
通光孔徑	＞90%
鍍膜	905nm ±20nm 波段內反射率＜1%
曲率半徑	11.462mm
表面質量	60-40
